2.4. The PointPulseTemplate¶
The PointPulseTemplate
(or short PointPT
) can be understood as a specialization of the TablePulseTemplate
. It restricts the channels to all having the same time points in their entries and the same expression for their voltages.
Let us first have a look at an simple example:
[1]:
from qupulse.pulses import PointPT
point_template = PointPT([(0, 'v_0'),
(1, 'v_1', 'linear'),
('t', 'v_0+v_1', 'jump')],
channel_names=('A', 'B'))
print(point_template.defined_channels)
{'A', 'B'}
As you can see the pulse template has two channels although we only provided one expression for the voltage per time point. The value of this expression can either be scalar as we will see now for v_0
or be a numpy
array of the same length as the number of channels is like v_1
. A value of the wrong length will result in an exception.

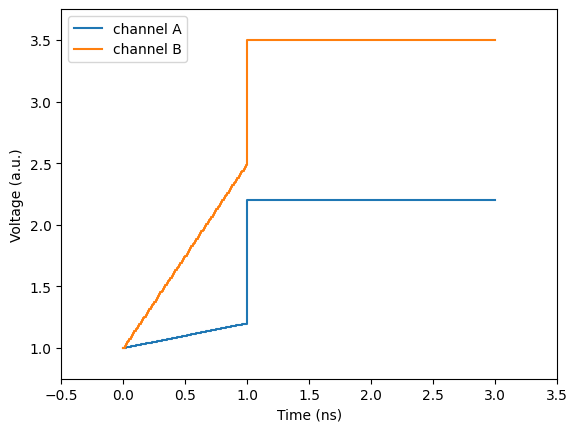

[2]:
%matplotlib notebook
from qupulse.pulses.plotting import plot
import numpy as np
parameters = dict(t=3,
v_0=1,
v_1=np.array([1.2, 2.5]))
_ = plot(point_template, parameters, sample_rate=100)
